Protect the most vulnerable areas of doors and frames, surfaces, cabinets, glass and mirrors.
Plastic corner protectors give rigid protection, preventing fragile corners being chipped or damaged if dropped or badly handled. Use open corners for cabinets and large products, whilst closed and expanding corners give full double sided corner protection for narrower items such as doors, picture frames and mirrors. Plastic edge protectors are designed to prevent strap crushing the edges of cartons and pallets and also have external ridges to hold the strap in place.

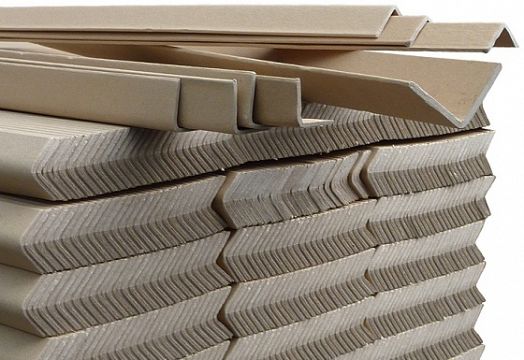

System90™ card edges are an economical way of stabilising palletised products and preventing crushing. They can be used inside boxes to reinforce corners and to protect the edges of finished timbers, surfaces and worktops.

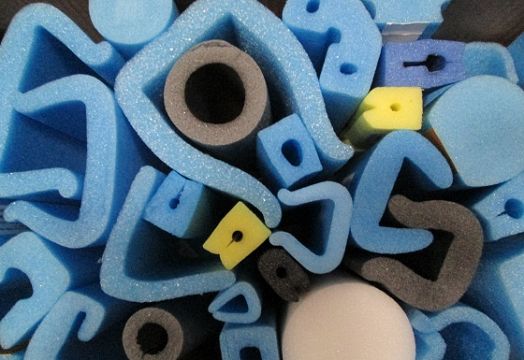

Flexible Provex™ foam edge and corner pieces give extra cushioning and protection from shock impact and vibration damage. Different profiles are available to suit each application which slide easily onto the product, grip the edge securely, and remove without leaving any residue. Perfect for protection during installation and construction projects.
System90™ and Provex™ edge protection conform to BondMark™ international packaging standards: products you can trust.
PLASTIC EDGE & CORNER PROTECTION
Code | Size (depth x leg length) | Style | Pack Qty |
---|---|---|---|
YOC28 | 30 x 65mm (1¼ x 2½") | Open Corner | 1000 |
YXC40 | 14-40 x 60mm (½-1½ x 2¼") | Expanding Corner | 1000 |
YXC70 | 35-70 x 60mm (1½-2¾ x 2¼") | Expanding Corner | 250 |
YCC60 | 18 x 60mm (¾ x 2¼") | Closed Corner | 500 |
YCC28 | 28 x 50mm (1 x 2") | Closed Corner | 1000 |
YCC61 | 40 x 60mm (1½ x 2¼") | HD Closed Corner | 700 |
YSE33 | 33 x 25mm (1¼ x 1") | Edge | 2000 |
YME40 | 40 x 35mm (1½ x 1½") | Edge | 1000 |
YLE60 | 60 x 60mm (2¼ x 2¼") | Edge | 1000 |
CARDBOARD EDGE PROTECTION
Code | Size (leg length x length) | Style | Pack Qty |
---|---|---|---|
#SEB35 | 35 x 500mm (1½ x 20") | L Edge | 50 |
S9/351 | 35 x 1000mm (1½ x 39½") | L Edge | 50 |
S9/415 | 35 x 1500mm (1½ x 59") | L Edge | 50 |
S9/624 | 45 x 2400mm (1¾ x 94½") | L Edge | 50 |
S9/501 | 50 x 1000mm (2 x 39½") | L Edge | 50 |
S9/504 | 50 x 1200mm (2 x 47¼") | L Edge | 50 |
S9/502 | 50 x 2000mm (2 x 79") | L Edge | 50 |

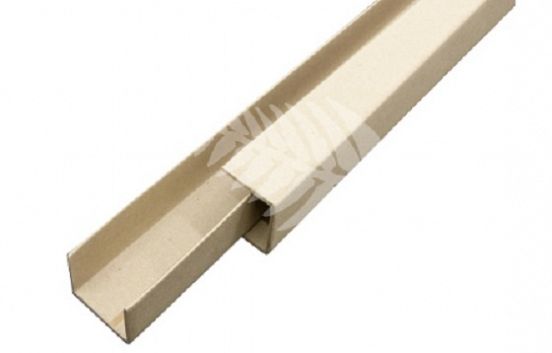

S9U/402 | 35 x 40 x 35 x 2000mm (1½ x 1½ x 1½ x 79") | U Edge | 20 |
FOAM EDGE & CORNER PROTECTION
Code | Size (min depth - max depth x length) | Style | Pack Qty |
---|---|---|---|
FE/L01 | 50 x 2000mm (2 x 79") | L Edge | 180 |
FE/L02 | 75 x 2000mm (3 x 79") | L Edge | 105 |
#FE/U04 | 5-15 x 2000mm (¼-⅝ x 79") | U Edge | 250 |
FE/U01 | 15-25 x 2000mm (⅝-1 x 79") | U Edge | 150 |
FE/U05 | 25-35 x 2000mm (1-1½ x 79") | U Edge | 90 |
FE/U02 | 35-45 x 2000mm (1½-1¾ x 79") | U Edge | 80 |
FE/U03 | 45-60 x 2000mm (1¾-2¼ x 79") | U Edge | 50 |
FE/U06 | 60-80 x 2000mm (2¼-3¼ x 79") | U Edge | 40 |
FE/U07 | 80-100 x 2000mm (3¼-4 x 79") | U Edge | 36 |
FE/U08 | 100-120 x 2000mm (4-4¾ x 79") | U Edge | 22 |
FCP15 | 5-15 x 100mm (¼-⅝ x 4") | U Corner | 800 |
FCP25 | 15-25 x 100mm (⅝-1 x 4") | U Corner | 600 |
FCP35 | 25-35 x 100mm (1-1½ x 4") | U Corner | 540 |
FCP45 | 35-45 x 100mm (1½-1¾ x 4") | U Corner | 300 |
FCP60 | 45-60 x 100mm (1¾-2¼ x 4") | U Corner | 200 |
FCP80 | 60-80 x 100mm (2¼-3¼ x 4") | U Corner | 200 |
